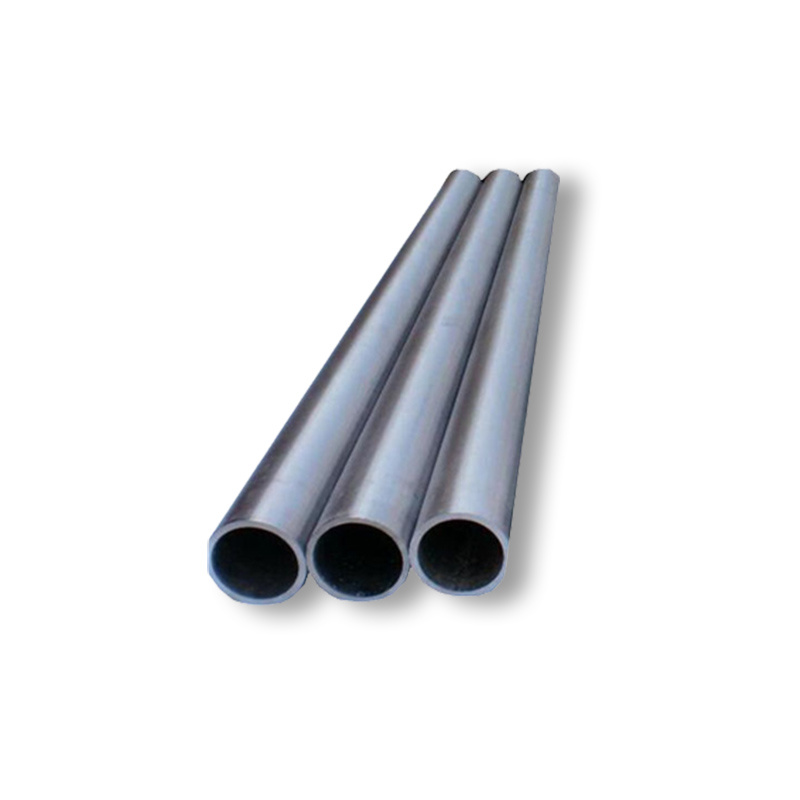

Titanium Grade 2 Pipe
- MOQ 1 Ton
- OriginChina
- Delivery Time≥7 days
- StandardASTM, AISI, JIS, GB, DIN, EN
- DemandCustomizable
- Mob: +8618191906640
- Email: info@cjmstainlesssteel.com
Titanium Grade 2 Pipe Description
Grade 2 titanium is industrial pure titanium. The strength is not high, but the plasticity is good, It is easy to process and form. Grade 2 titanium has good corrosion resistance in the atmosphere, sea water, wet chlorine and oxidation, neutral, weak reducing medium. It has better oxidation resistance than most austenitic stainless steel, but weaker heat resistance. Titanium alloy usually operates in humid atmosphere and seawater media, it is particularly resistant to pitting corrosion, acid corrosion, and stress corrosion. Moreover, it is resistant to alkali, chloride, chlorine-based organic substances, nitric acid, and sulfuric acid. etc. However, titanium has poor corrosion resistance to media with reducing oxygen and chromium salts.
Product Parameters
| Product Name | Titanium Grade 2 Pipe | |
| Outer Diameter | Round Pipe | 4mm-200mm |
| Square Pipe | 10*10mm-100*100mm | |
| Rectangular Pipe | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. | |
| Certificate | ISO, SGS, BV | |
| Production Technology | Hot Rolling, Cold Rolling | |
Chemical Composition & Mechanical Properties
| STM/ASME | GB | JIS | Element Content（wt%） | Mechanical Properties | |||||||
| N,max | C,max | H,max | Fe,max | O,max | Others | Strength Of Extension | Ductility | ||||
| Mpa,min | %，min | ||||||||||
| Pure Titanium | Gr.1 | TA1 | Class1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | – | 240 | 24 |
| Gr.2 | TA2 | Class2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 20 | ||
| Gr.3 | TA3 | Class3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 18 | ||
| Gr.4 | TA4 | Class4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 15 | ||
| Titanium Alloy | Gr.5 | TC4 | Class60 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | AI:5.5-6.75 | 895 | 10 |
| Ti-6A1-4V | V:3.5-4.5 | ||||||||||
| Gr.7 | TA9 | Class12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | Pd:0.12-0.25 | 345 | 20 | |
| Gr.9 | TC2 | Class61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | AI:2.5-3.5 | 620 | 15 | |
| V:2.0-3.0 | |||||||||||
| Gr.11 | TA9-1 | Class11 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | Pd:0.12-0.25 | 240 | 24 | |
| Gr.23 | TC4 ELI | Class60E | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | AI:5.5-6.5 | 828 | 10 | |
| V:3.5-4.5 | |||||||||||
Scope of Application
Used in fuselage and aircraft engine parts, marine chemical parts, condenser pipes, heat exchangers.
